Electric Locks And Accessories
DOOR STRIKE
EM LOCK
DROP BOLT
ELECTRIC MORTISE
MULTIPOINT LOCK
DOOR LOOPS
DROP BOLT LOCKS
EM-LOCKS
MORTISE LOCKS
ELECTRIC STRIKE
MULTIPOINT LOCKS
CABINET AND WARDROBE LOCKS
ACCESSORIES
ESL 12FS
HEAVY DUTY LONG ELECTRIC DOOR STRIKE
Compatible with concealed Mortise Lock
Status: Open/Close
Door status signal output
Power: 12 VDC
Fail Secure and Fail safe configurable
Application: Main doors and internal doors
EL10
Lock Size: 82L x 30W x 28H (mm)
Power: 12V DC, 250 mA
Holding Force: 350 lbs
Fail Safe, Fail Secure selectable
EML 650B
Lock Size: 270L x 25W x 52H (mm)
Power: 12V DC, 500 mA
Holding Force: 1000 lbs
Fail Safe, Fail Secure selectable
Aurus MPL 1800
MULTIPOINT LOCK
Motorized Operation
Mechanical mortise for manual Override
Latch is adjustable for Left/Right opening doors
Power: 12 VDC, 1 A
Applications: Main doors, Double doors, Internal doors
DRF (Day release function) variant available.
Aurus MODP 1300
MOTORISED CONCEALED ELECTRIC DROP BOLT
Door Status signal output
Lock Open Status
Power: 12 to 24 VDC, 400mA
Adjustable Delay time
Fail Safe and Fail secure models available
Application: Heavy swing and sliding doors
AURUS HDB-500A/B LED
HEAVY DUTY CONCEALED ELECTRIC DROP BOLT
LED Status Open/Close
Door status signal output
Power: 12 VDC
Holding Force: 1000Kg
Fail Safe and Fail secure models available
Application: Wooden Doors, Aluminum doors
AURUS SDL 230 NO /NC
CONCEALED SLIDING DOOR LOCK
Holding Force: 650 lbs
Manual key- Euro Cylinder
Door Status Signal output
Power: 12 VDC, 240 mA
Applications: Heavy sliding wooden and metal doors
Aurus DP 1002 MO
CONCEALED ELECTRIC DROP BOLT
LED Status Open/Close
Door status signal output
Power: 12 VDC
Holding Force: 1200 lbs
Fail Secure with mechanical key
Cable management
EDL 401

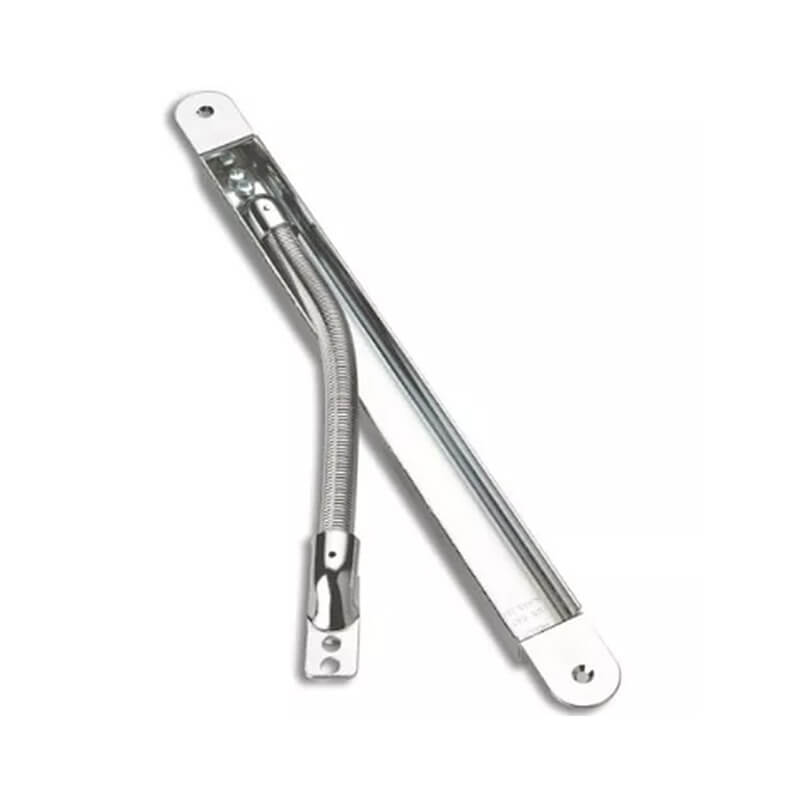

CDL-402S

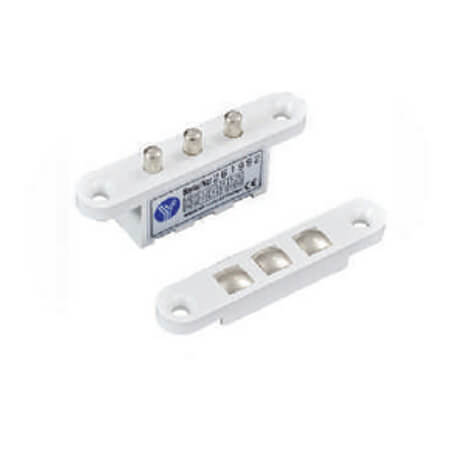

TP 403

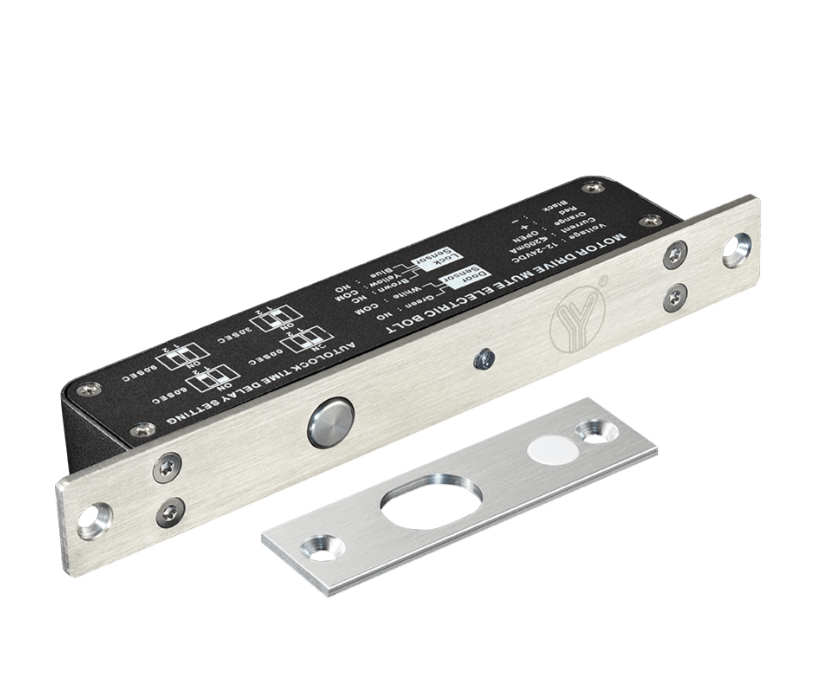

MDP 1100
Door Status signal output
Lock Open Status
Power: 12 to 24V DC, 400mA
Adjustable Delay time
Fail-Open model
Holding Force: 1100 lbs
Application: Swing and Sliding doors
MDP 1200
Door Status signal output
Lock Open Status
Power: 12 to 24V DC, 400mA
Adjustable Delay time
Fail-Close model
Holding Force: 1100 lbs
Application: Swing and Sliding doors
SDP 600
LED Indicator
Lock Open Status
Power: 12 to 24 V DC
Adjustable Delay time
Fail-Close model
Application: Swing and Sliding doors
MODP 1300
Door Status signal output
Lock Open Status
Power: 12 to 24V DC, 400mA
Adjustable Delay time
Fail-Open and Fail-Close models available
Application: Heavy swing and sliding doors, 2 way swing doors
HDB-500A LED
LED Status Open/Close
Door status signal output
Power: 12V DC
Holding Force: 1000Kg
Fail-Open model available
Application: Solid Wooden Doors, Aluminum doors
HDB-500B LED
LED Status Open/Close
Door status signal output
Power: 12V DC
Holding Force: 1000Kg
Fail-Close model available
Application: Solid Wooden Doors, Aluminum doors

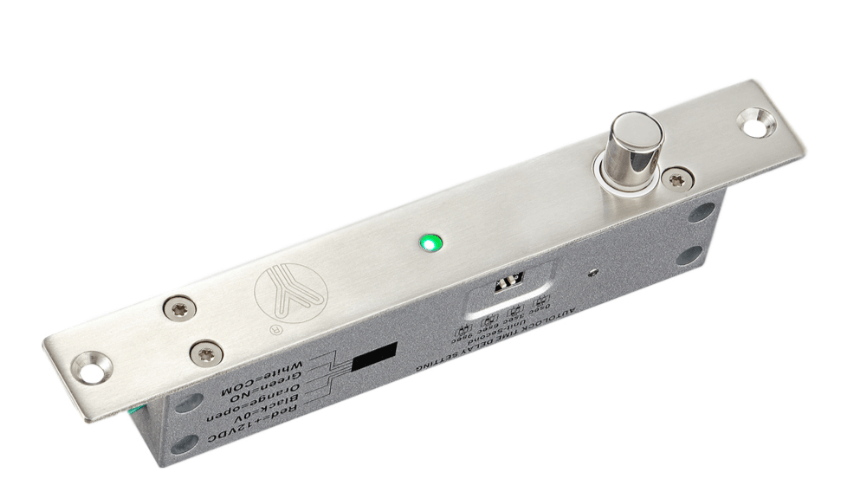

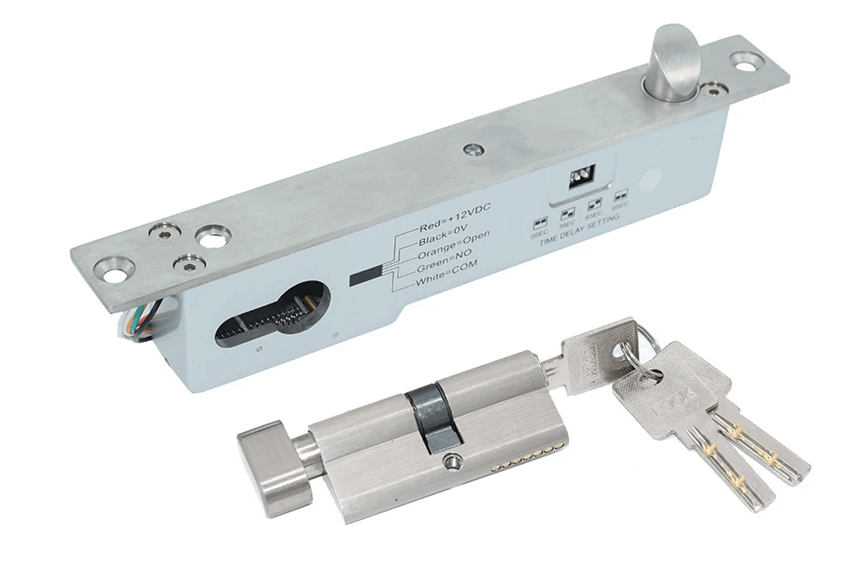

DP 1002 MO
LED Status Open/Close
Door status signal output
Power: 12V DC
Holding Force: 1200 lbs
Fail-Close with mechanical key
Application: Swing doors
DPG 600
LED Status Open/Close
Door status signal output
Power: 12V DC
Holding Force: 1200 lbs
Fail-Close model
Application: Fully frameless glass doors
DROP BOLT LOCKS
MDP 1100
Door Status signal output
Lock Open Status
Power: 12 to 24V DC, 400mA
Adjustable Delay time
Fail-Open model
Holding Force: 1100 lbs
Application: Swing and Sliding doors
MDP 1200
Door Status signal output
Lock Open Status
Power: 12 to 24V DC, 400mA
Adjustable Delay time
Fail-Close model
Holding Force: 1100 lbs
Application: Swing and Sliding doors
SDP 600
LED Indicator
Lock Open Status
Power: 12 to 24 V DC
Adjustable Delay time
Fail-Close model
Application: Swing and Sliding doors
MODP 1300
Door Status signal output
Lock Open Status
Power: 12 to 24V DC, 400mA
Adjustable Delay time
Fail-Open and Fail-Close models available
Application: Heavy swing and sliding doors, 2 way swing doors
HDB-500A LED
LED Status Open/Close
Door status signal output
Power: 12V DC
Holding Force: 1000Kg
Fail-Open model available
Application: Solid Wooden Doors, Aluminum doors
HDB-500B LED
LED Status Open/Close
Door status signal output
Power: 12V DC
Holding Force: 1000Kg
Fail-Close model available
Application: Solid Wooden Doors, Aluminum doors
DP 1002 MO
LED Status Open/Close
Door status signal output
Power: 12V DC
Holding Force: 1200 lbs
Fail-Close with mechanical key
Application: Swing doors
DPG 600
LED Status Open/Close
Door status signal output
Power: 12V DC
Holding Force: 1200 lbs
Fail-Close model
Application: Fully frameless glass doors
Hook Locks

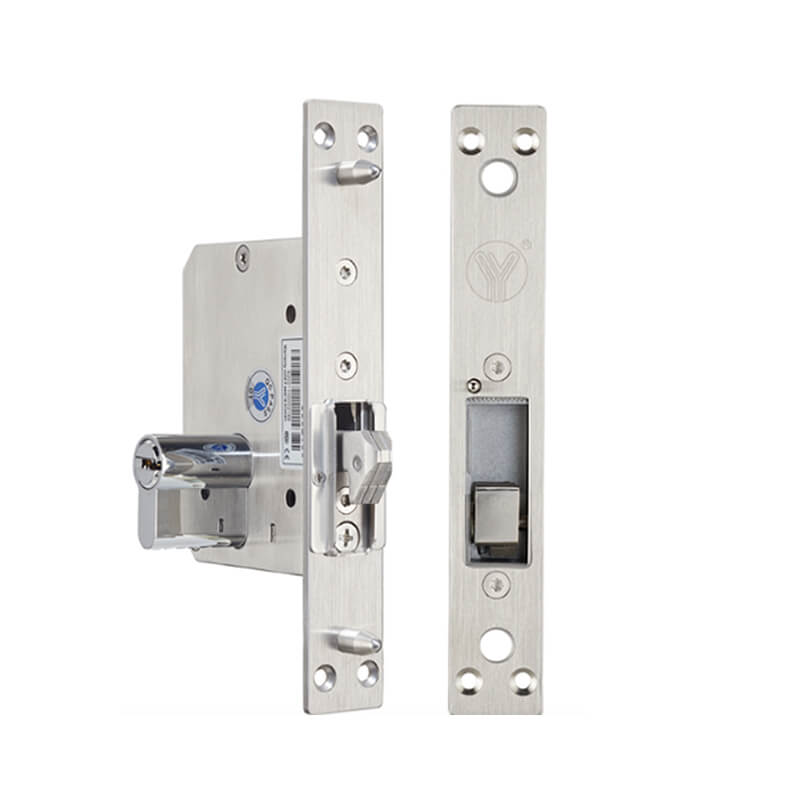

SDL 230 NO/SDL 230 NC
Holding Force: 650 lbs
Manual key-Euro Cylinder
Door Status Signal output
Power: 12V DC, 240 mA
Applications: Heavy sliding wooden and metal doors

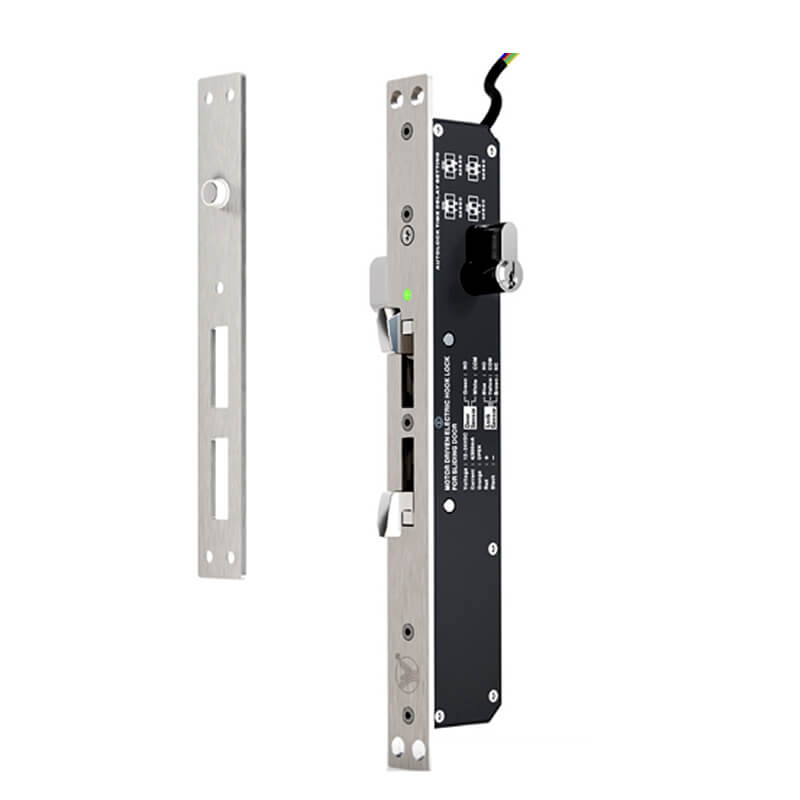

SDL 240MD
Dual Hook holding system
Holding Force: 800 lbs
Manual key override
Door Status Signal output
Time Delay: 0/3/6/9 secs
LED status: Red is locked, green is unlocked
Power: 12V DC, 240 mA
Applications: Sliding framed glass and metal doors

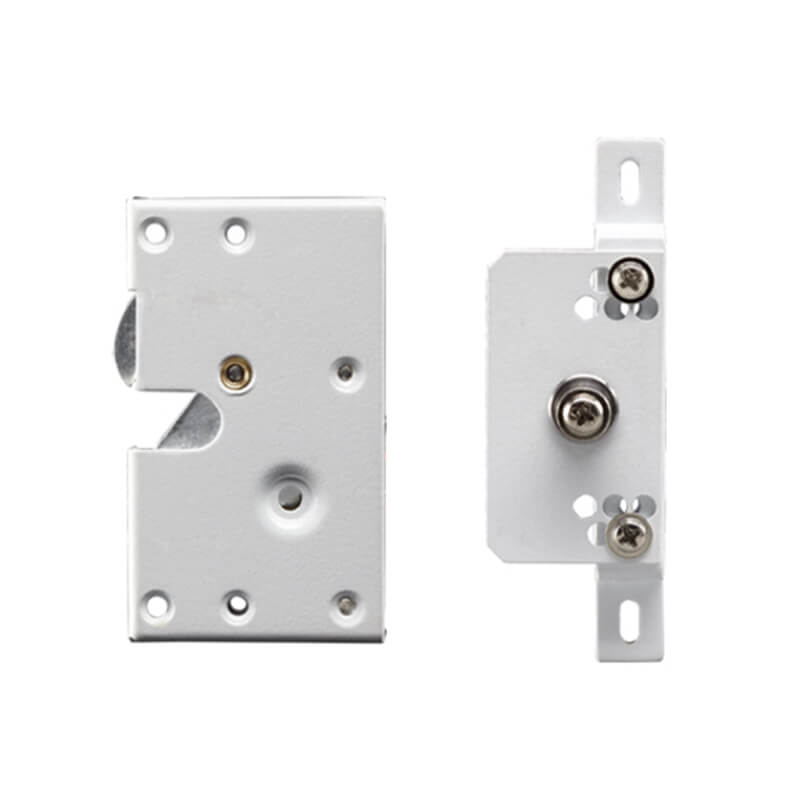

SDL 120
Power to open
Power: 12V DC
Holding Force: 300 kgs
Application: Hollow metal and plastic sliding windows
EM-Locks
CEML 600A
Holding Force: 350 lbs
Door Status Signal output (optional)
Power: 12V DC, 240 mA
Applications: Heavy sliding wooden and metal doors
EML 600
Holding Force: 600 lbs
Door Status Signal output (optional)
Power: 12V DC, 240 mA
Applications: Heavy sliding wooden and metal doors
EML 1200
Holding Force: 1200 lbsDoor Status Signal output (optional)Power: 12V DC, 240 mAApplications: Heavy sliding wooden and metal doors
Mortise Locks

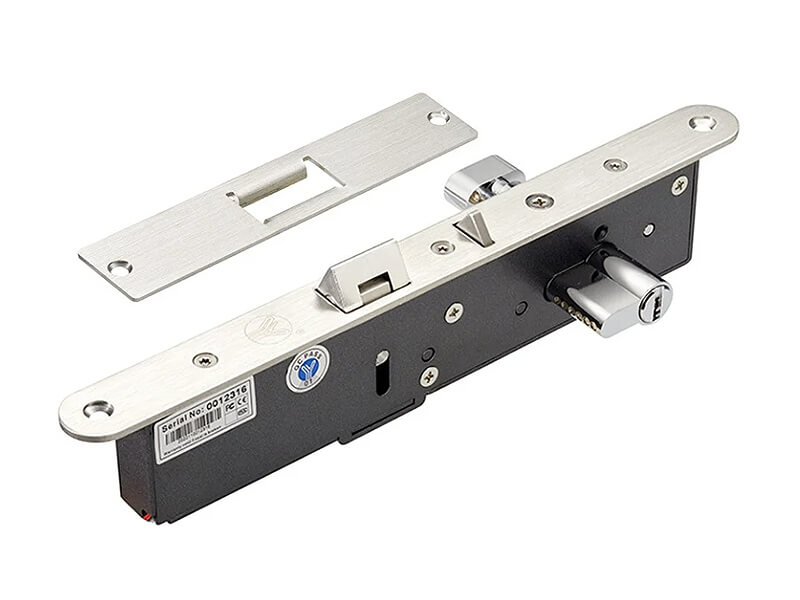

EMRL 650B
Power: 12V DC, 500 mA
Holding Force: 1000 lbs
Fail-Open, Fail-Close selectable
Euro-Cylinder and Manual Keys
Applications: Main Doors and internal doors
Electric Strike

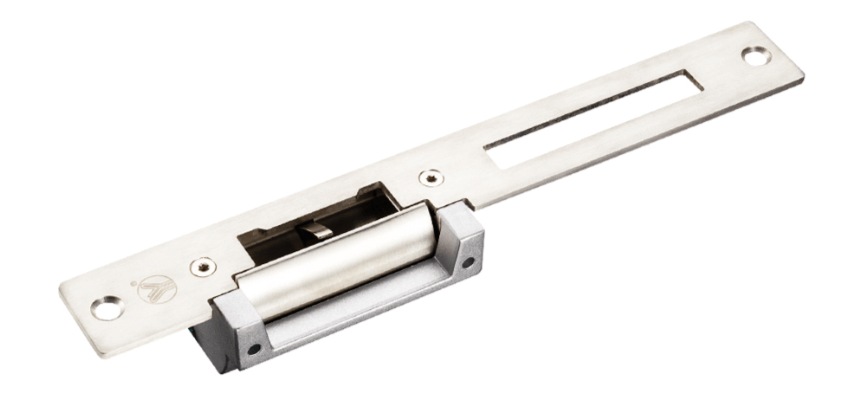

ESL 12FS
Compatible with concealed Mortise Lock
Status: Open/Close
Door status signal output
Power: 12V DC
Fail-Close and Fail-Open configurable
Application: Main doors and internal doors
ESS 12FS
Compatible with concealed Mortise Lock
Status: Open/Close
Door status signal output
Power: 12V DC
Fail-Close and Fail-Open configurable
Application: Main doors and internal doors
Multipoint Locks

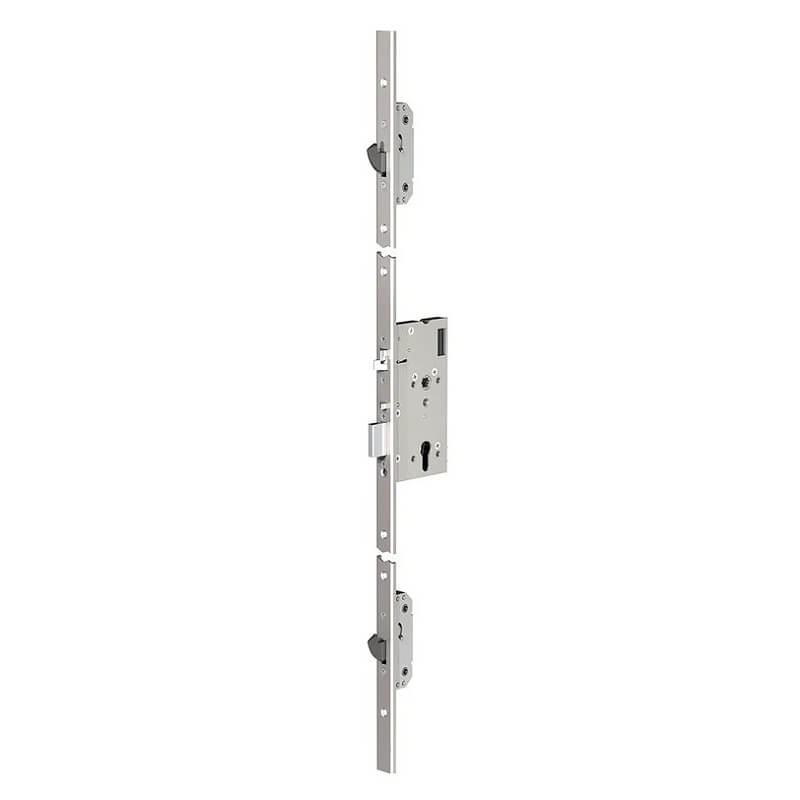

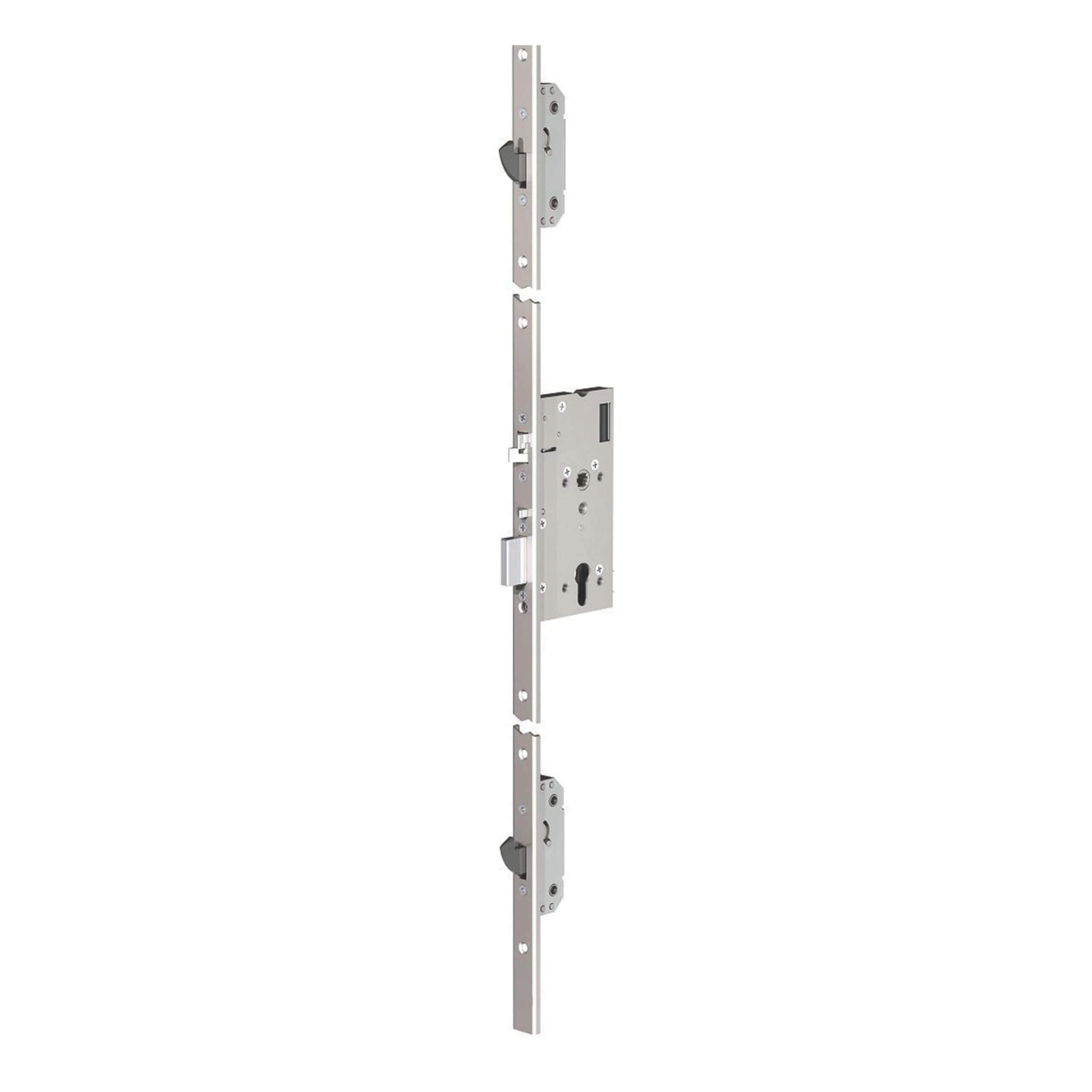

MPL 1800
Motorized Operation
Mechanical mortise for Manual Override
Latch is adjustable for Left/Right opening doors
Power: 12V DC, 1 A
DRF (Day Release Function) available
Applications: Main doors, Double doors, Internal doors
Cabinet and Wardrobe Locks

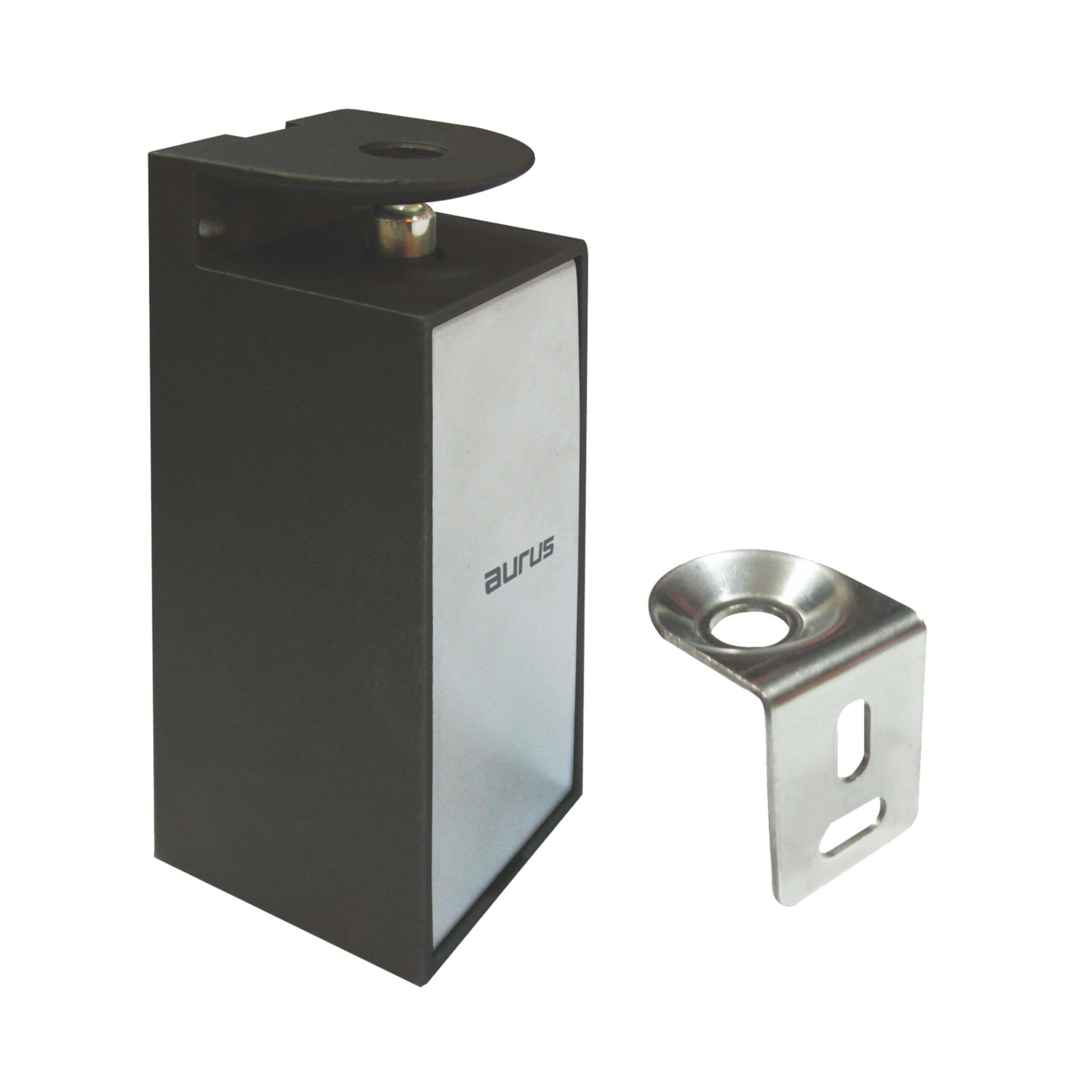

EL 10
Power: 12V DC, 250 mA
Holding Force: 350 lbs
Fail-Open, Fail-Close selectable
Application: swing and sliding wardrobe doors
EL 20
Door status signal output
Power: 12V DC
Power to open
Holding force: 300 lbs
Application: Cabinet doors, lockers
Accessories

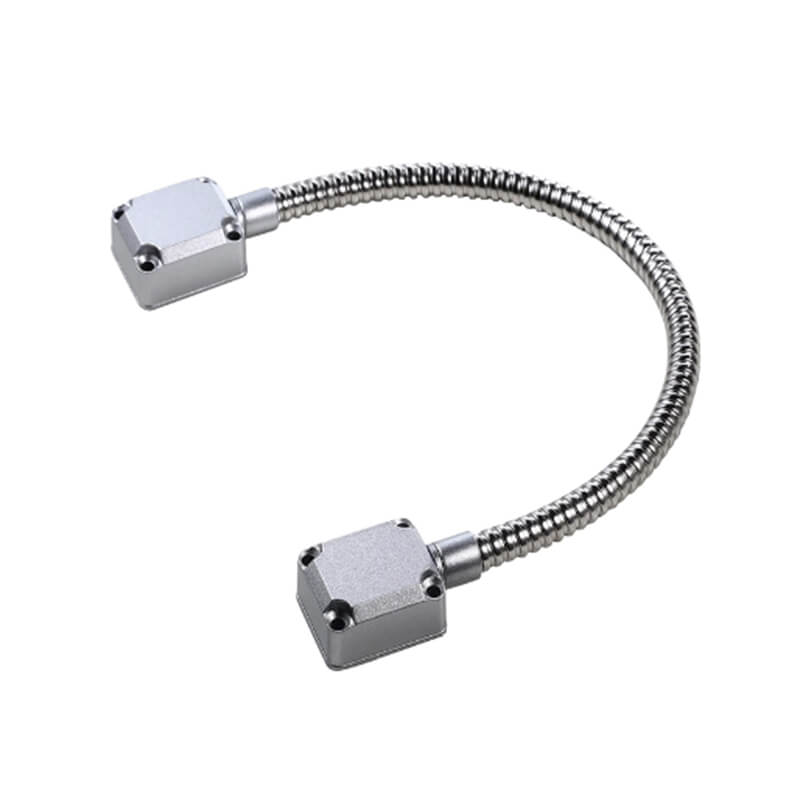

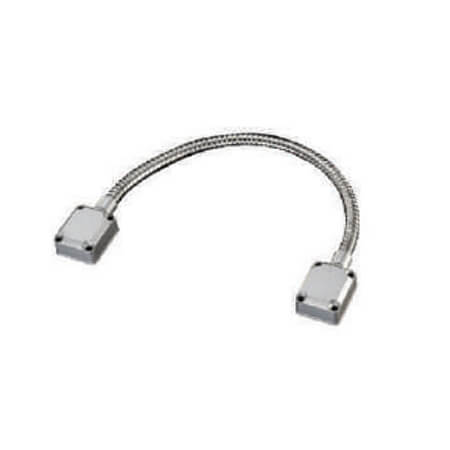

EDL 401

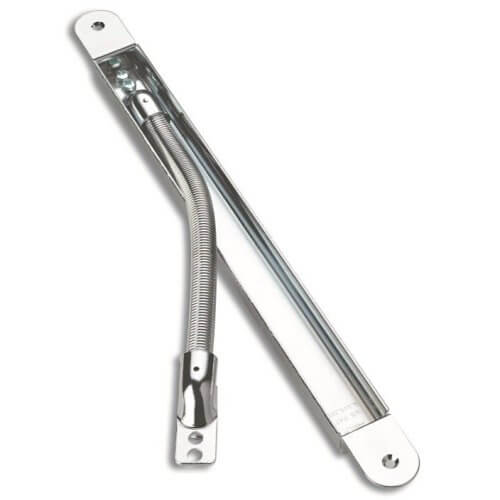

CDL 402S
